Txias chamber tuag casting txheej txheem technology thiab txoj cai
Tuag casting tecnology yog ib tug txheej txheem ntawm organically combining peb lub ntsiab tseem ceeb ntawm tuag casting tshuab, tuag casting pwm, thiab alloy thiab comprehensively siv lawv.
Rau txias chamber tuag casting tshuab, cov kua hlau yog poured rau hauv lub siab chamber los ntawm phau ntawv los yog tsis siv neeg pouring cov cuab yeej, thiab ces lub txhaj plunger yog siab mus nias cov hlau mus rau hauv kab noj hniav. Tom qab cov hlau molten solidifies, cov pwm tuag-casting tau qhib, thiab cov casting raug coj tawm mus ua kom tiav lub voj voog tuag-casting.
Cov txheej txheem thev naus laus zis ntawm tuag casitng raws li hauv qab no:
debugging ntawm tuag casting tshuab → 2. installation ntawm tuag casting pwm → 3. pwm preheating thiab txheej → 4. kaw lub pwm → 5. nchuav thiab txhaj tshuaj → 6. tuav xovxwm → 7. qhib lub pwm thiab rub cov tub ntxhais → 8. tshem cov tuag casting qhov chaw tawm
Qhov tshwj xeeb ntawm 38T txias chamber aluminium ua tshuab
installation daim duab ntawm tuag casting pwm
Cov ntsiab lus ntawm 38T txhuas siab tuag casting tshuab
Qauv YSC38 kab rov tav txias chamber tuag-casting tshuab yog ib qho ntawm cov khoom lag luam, kev pom zoo. Nws tuaj yeem siv los ua cov hlau tsis muaj hlau, xws li Al. Zn. Cu. ..., thiab nws cov alloy. Nws yog ib qho khoom siv zoo tshaj plaws rau kev tsim cov khoom me me zoo thiab compact, muaj peev xwm ntawm 700 ~ 900 daim hauv yim teev ua haujlwm.
Kev txhaj tshuaj
Kev txhaj tshuaj muaj ob theem ntawm kev ceev.
Hydraulic Circuit Court
Hauv hydraulic circuit system, siab yog 8.5 Mpa. Lub siab no yog tawm los ntawm valve PV1.
Lubricant system
Lub tshuab txais lub hauv paus roj lubrication, yog li lubricant yuav tsum huv. Lub sijhawm lubrication ntawm lub lubrication system tuaj yeem teem rau hauv tib neeg-tshuab interface.
Txias qhov system
Lub tshuab no tau nruab nrog lub tshuab dej txias uas muaj cov kav dej txias thiab cov kav dej. Thiab cov dej txias yuav yog siv los ntawm hydraulic roj txias, cov dej yuav tsum yog cov dej huv thiab huv si los yog dej tshiab.

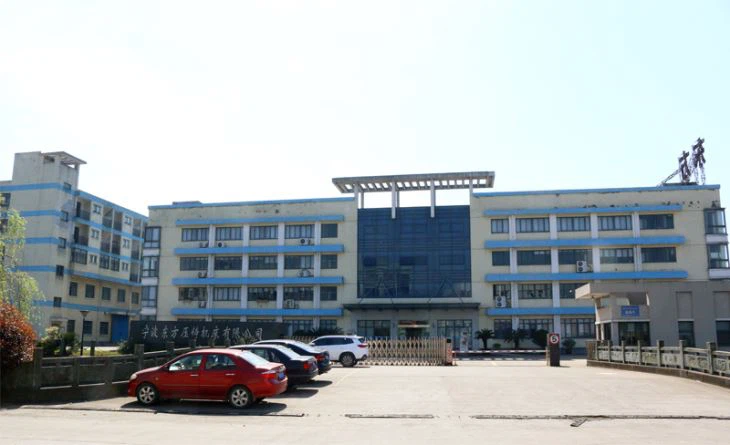

Hais txog peb
1. Nrog keeb kwm dhau 40 xyoo
2. Hoobkas cheeb tsam: 40,000 square meters
3. Cov neeg ua haujlwm: Ntau tshaj 500
4. Muaj peev xwm ntau lawm:1000sets ib xyoos twg
5. Lub tuam txhab muaj Tech & Research center
6. Lub tshuab tseem ceeb: 100 teeb
FAQ:
Q: Yuav ua li cas txog koj warranty thiab kev pab cuam tom qab muag?
A: Peb muaj ib xyoos lav rau lub tshuab. Peb cov kws tshaj lij tuaj yeem tuaj txawv teb chaws los pab txhim kho thiab kho lub tshuab kuj muab kev cob qhia pub dawb kom txog rau thaum koj tau txais cov txuj ci.
Q: Dab tsi yog qhov kub thiab txias chamber tuag casting tshuab ua haujlwm?
A: Thov ua siab zoo nco ntsoov cov roj kub tsis tuaj yeem tshaj 55 degree, rau cov khoom kub, aluminium alloy yog li 700 degree, zinc alloy yog 420 degree, thiab tooj dag yog li 950 degree.
