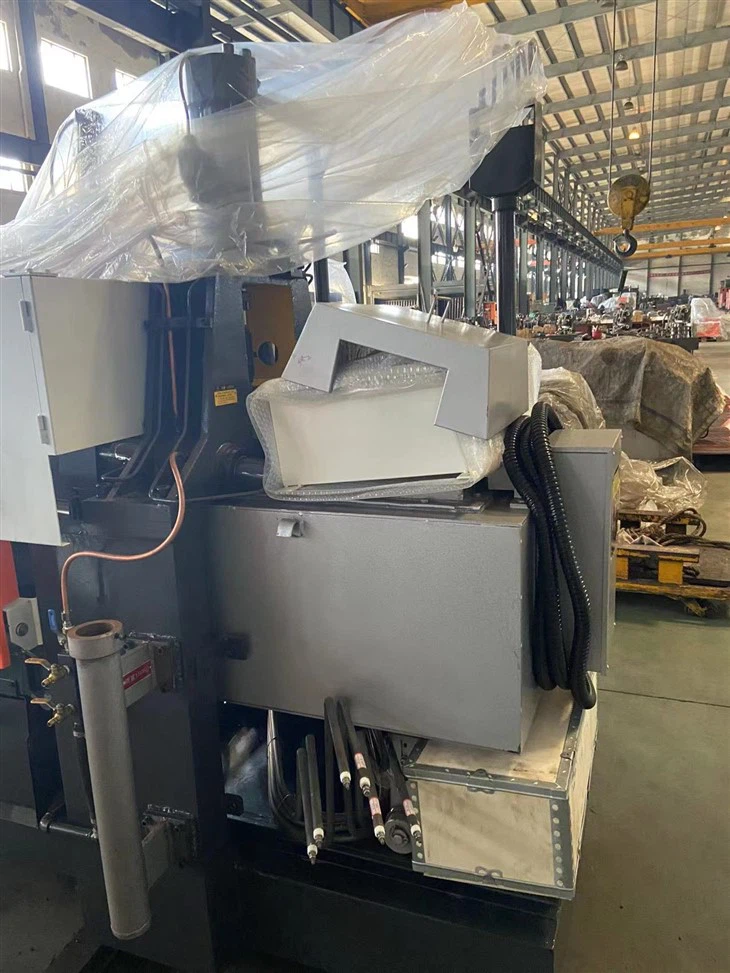

J214 hlau molding tshuab yog ib qho kev sib txuas ntxiv rau lub ntiaj teb ntawm cov tshuab tuag-casting. Boasting advanced nta xws li kev lag luam-qib microcomputer tswj, muaj peev xwm los teeb tsa cov txheej txheem casting thiab tsis nyob rau hauv ib tug neeg siv interface, thiab ib tug high-flow, plug-in roj Circuit Court rau optimum casting yields, lub tshuab no yog lub epitome ntawm efficiency thiab precision.
Tsis tas li ntawd, J214 tau nruab nrog cov khoom siv hluav taws xob thiab hydraulic sab saum toj, ua kom muaj kev ruaj ntseg, kev cia siab, thiab kev nyab xeeb thaum ua haujlwm. Tuag-casting nrog lub tshuab no lav cov khoom zoo, cov khoom tiav txhua lub sijhawm.
Ib qho tseem ceeb ntawm no 50T hlau molding tshuab yog nws lub peev xwm los ua kab rov tav tuag-casting, ua rau nws yog ib qho kev xaiv rau ntau yam kev siv. Nws cov kev tsim kho ruaj khov, kev ua haujlwm muaj zog thiab kev cog lus me me ua rau nws zoo meej rau kev siv hauv chaw lag luam uas qhov chaw nyob ntawm tus nqi.
Specifications thiab Parameters
|
|
Technical Figures |
Chav tsev |
Cov duab |
|
Kev pom |
Pom zog |
kN (tws) |
500(50) |
|
Platen dimension (H × V) |
mm |
460×498 |
|
|
Qhov chaw sab hauv nruab nrab ntawm rub pas nrig (H × V) |
mm |
290×290 |
|
|
Txoj kab uas hla ntawm rub pas nrig |
mm |
50 |
|
|
Stroke ntawm spotting |
mm |
210 |
|
|
Max. thickness ntawm tuag |
mm |
320 |
|
|
Min thickness ntawm tuag |
mm |
120 |
|
|
Txhaj tshuaj |
Txhaj zog |
kN kev |
50 |
|
Stroke of Txhaj |
mm |
110 |
|
|
Txoj kab uas hla ntawm chav txhaj tshuaj txheem |
mm |
50/45 (Tshwj xeeb) |
|
|
Dosage ntawm hlau ib txhaj tshuaj (Zinc) |
Kg |
1.1/0.9(Tshwj xeeb) |
|
|
Tshem tawm |
Ejection Force |
kN kev |
50 |
|
Stroke ntawm Ejection |
mm |
50 |
|
|
Lub Sijhawm Ib Cycle |
Tag nrho lub sij hawm ntawm tuag qhib & kaw, ejection & ejection rov qab, txhaj tshuaj & txhaj rov qab. |
s |
7 |
|
Core |
Tsiv tub ntxhais (1 pab pawg) |
||
|
Kev sib txuas qhov ntev |
mm |
M18X1.5 |
|
|
Cov dej txias |
Tshuab txias dej cia-hauv roj hmab hose txoj kab uas hla |
Rc |
3/4 |
|
Tshuab txias dej cia-hauv roj hmab hose txoj kab uas hla |
Rc |
1 1/2 |
|
|
Pwm txias dej cia-hauv roj hmab hose txoj kab uas hla |
mm |
10 |
|
|
Pwm txias dej tso tawm roj hmab hose txoj kab uas hla |
mm |
10 |
|
|
Qhov ntau ntawm cov dej txias valve |
PC |
4 |
|
|
Cua compression
|
Siab |
MPa |
0.6 |
Kev siv J214 hlau molding tshuab txhais tau hais tias cov txheej txheem tuag-casting tuaj yeem ua tiav nrog cov qib siab ntawm kev ua tau zoo thiab kev ua haujlwm zoo, ua rau muaj txiaj ntsig zoo rau kev lag luam. Tsis tas li ntawd, lub tshuab no txhawb kev tsim cov khoom zoo, cov khoom tiav, kom ntseeg tau tias cov haujlwm ua tiav raws sijhawm thiab cov qauv siab.
Cim npe nrov: hlau molding tshuab, Suav teb, manufacturers, lwm tus neeg, Hoobkas, customized, lag luam wholesale, luv nqi
