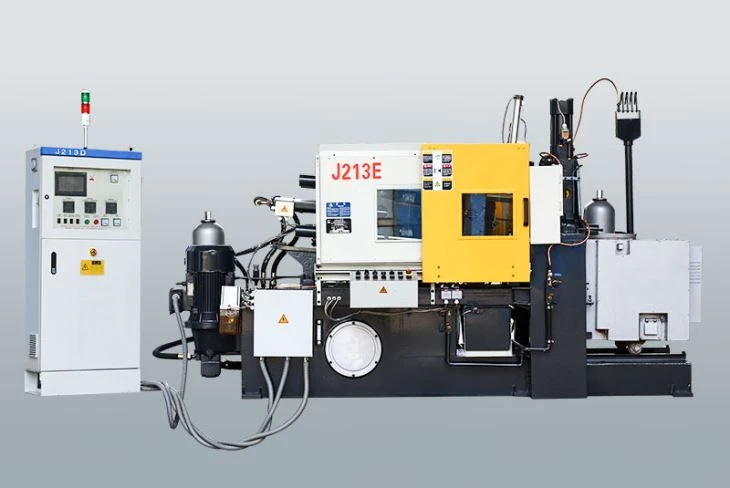

Lub Detail Of J213E Kub Chamber Zinc Tuag Casting Tshuab
Kub chamber tuag casting, qee zaum hu ua gooseneck tuag casting, uas yog ib lub raj, kua, semi-kua hlau hauv lub pas hlau uas nyob pwm hauv siab. Thaum pib ntawm lub voj voog, lub piston ntawm lub tshuab yog nyob rau hauv ib qho kev sib cog lus hauv lub xeev, thaum uas taw tes rau cov hlau uas muaj peev xwm ua rau lub caj dab ntawm lub Goose. Cov pa kub lossis hydraulic piston nyem qhov hlau kom nws sau rau pwm.
Qhov kom zoo dua 38Ton kub chamber tuag casting tshuab yog:
Lub voj voog ua rau thaj tsam (kwv yees li 15 cycles ib feeb)
Yooj yim automation
Cov txheej txheem rau yaj hlau yog heev convenent
Qhov tsis zoo ntawm kev kub ntxhov siab ntawm lub siab kub tuag casting tshuab muaj xws li tsis muaj peev xwm tuag-cam khwb cia hlau nrog ib lub siab dua melting point, as Well as tuag-casting ntawm txhuas, vim txhuas yuav nqa cov hlau tawm ntawm lub pas dej ua ke. Yog li, kub chamber tuag casting machine feem ntau yog siv rau alloys ntawm zinc, tin thiab lead. Tsis tas li ntawd, chav kub chamber tuag casting yog nyuaj los tuag nrum castings loj, thiab txoj kev no feem ntau yog tsim rau tuag casting me castings.

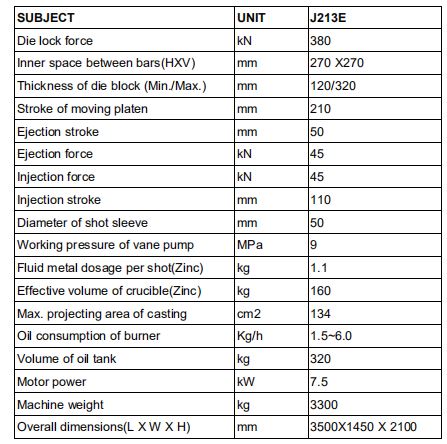

Cov Lus Qhia ntawm 38Ton Zinc / Lead Tuag Casting Tshuab
PLC CONTROLLED TSEV
PLC nrog LCD Screen Screen muaj nuj nqi raws li parameter setrtings thiab ntau lawm xyuas.Machine adopts lub ntiaj teb nto npe nrov hluav taws xob Cheebtsam kom ntseeg tau ruaj ntseg, ruaj ntseg thiab txhim khu kev qha.
CLAMPING TSEV
Siab lub zog thiab hnav cov khoom siv tiv thaiv kev tiv thaiv thiab lub toggles.toggle system txais ob chav txuas khi bar kev taw qhia, ua tiav cov nyhuv ceev, muaj zog, ruaj thiab ruaj khov.Hydarlic tsav iav hom tuag thickness adjusting ntaus ntawv ua haujlwm sai thiab guarantees qhov tseeb.
HYDRAULIC SYSTEM
roj hydralic system adopts proportional tswj lub siab thiab ndlwg, muaj ntau theem siab & ceev tswj, thiab tsis tshua muaj siab tuag clamping muaj nuj nqi.European los yog cov Japanese nto valve thiab roj ntsaws ruaj ntseg zoo thiab durability; Cov hom zoo paub zoo dua qhov kev ua tau zoo.Qhov siab -tej ob lub twj tso dag lossis ib lub twj tso kua mis nrog cov suab nrov tsawg dua qub tseg thiab ua haujlwm kom zoo dua qub.
KEV KHO MOB
2 stages Txhaj tshuaj tiv thaiv nrog piston hom accumulator thiab siab ntim roj cartridge valve ua tiav cov haujlwm ceev ceev & cov kab mob ruaj khov.Txhua yam kub yog ua los ntawm cov tshuab ua haujlwm kom ruaj khov rau qhov chaw kub siab, kev kub siab thiab kev kub ceev.

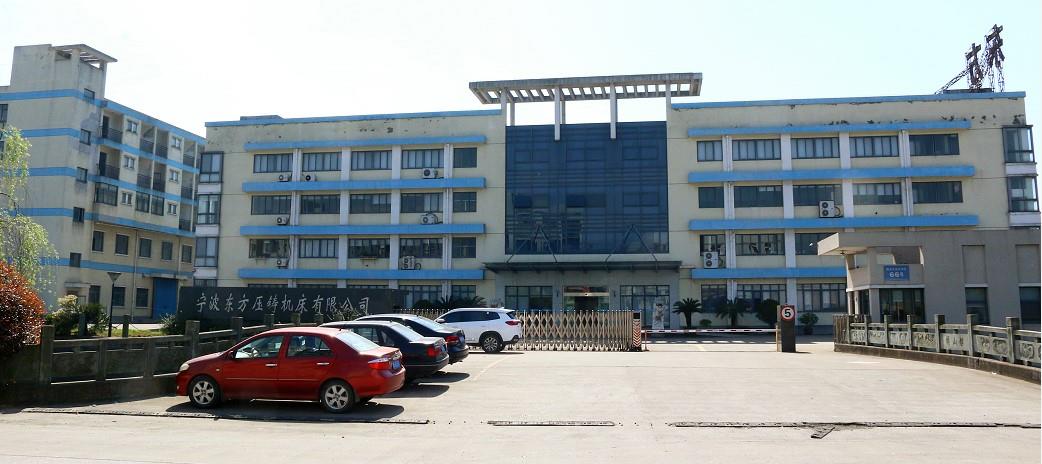

Peb Lub Hoobkas
Nyob rau hauv Ningbo Dongfan Die-casting tshuab Tool Co., Ltd, lub hom phiaj ntawm tsim nto moo khoom thiab tsim lub tuam txhab rau ntau pua xyoo tau dhau los ntawm tiam mus rau tiam. Hauv 30 lub xyoo dhau los no, peb yeej ib txwm xav ua raws li kev npaj siab txias / kub chamber tuag casting tshuab thiab kev ua ncaj ncees. Peb yog devoted peb tus kheej mus rau siab thiab zoo dua tuag cast tshuab nyob rau hauv tuag casting yog nyob rau hauv Tuam Tshoj.
Nrog rau keeb kwm ntawm ntau tshaj 35 xyoo
Fabkis Cheeb Tsam: 40,000 square meters
Cov neeg ua haujlwm: Ntau tshaj 500
Muaj Peev Xwm Ntau Lawm: 10,00-teev txhua xyoo
Lub tuam txhab tiv nqi Tech & Research center
Cov Cuab Yeej : 100sets
Lus nug
Q: Muaj pes tsawg luj yog cov tuag casting tshuab uas tsim nyog rau?
A: Feem ntau, lub tshuab 38T ua rau cov khoom tsis pub dhau 150g.
Q: Koj lub peev xwm txhua xyoo yog dab tsi?
A: Txog 500 poob toj ib xyoo.
Lus nug: Siv pes tsawg grams lub tshuab hno tshuaj ?
Lus Teb: Cov tshuaj fluid hlau rau ib qho zuaj (zinc) yog 1.1kg.
